Two Axis High Accuracy Laser Diameter Test Equipment For Cable And Fiber

Name: Two Axis High Accuracy Laser Diameter Test Equipment For Cable And Fiber
Brand: HTTS
Price: 1 USD

Quality Two Axis High Accuracy Laser Diameter Test Equipment For Cable And Fiber wholesale

Brand Name : HTTS

Model Number : LDM-50XY

Certification : ISO

Place of Origin : CHINA

MOQ : 1 SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 sets / week

Delivery Time : 5-8 work days

Packaging Details : export carton packing

Model : LDM-50XY

Measuring range : 0.1000~50mm

Precision : ±3μm

Repeatability error : ±1μm

Resolution : 0. 0001mm

Type : Measurement Tool,Laser Distance Measuring Instrument

Application : Pipe diameter production testing

Contact Now

Online laser diameter gauging instrument for measuring wire & cable diameter at two axis

FEATURES

Scanning speed:1800scan/second
Communication interface: RS232 and RS485, that can keep online detection by connecting computer or transfer the measurement records to computer.
Parameter setting: User can set the nominal value and tolerance of the measured object; and set the error alarm indication; the gauge No, line No, technical strand and so on.
Online laser diameter gauging instrument for measuring wire & cable diameter at two axis

SPECIFICATION

Type	Measuring range	Precision	Repeatability error	Resolution
LDM-50AXY	0. 1000~50mm	±3μm	±1μm	0.0001mm

MORE DETIALS

Two Axis High Accuracy Laser Diameter Test Equipment For Cable And Fiber

OUR SERVICE

We guarantee product quality and provide technical support. Various services include logistics and transportation packaging.We can customize the solution according to customer needs.

Product Tags:

laser diameter measuring device

laser diameter gauging tools

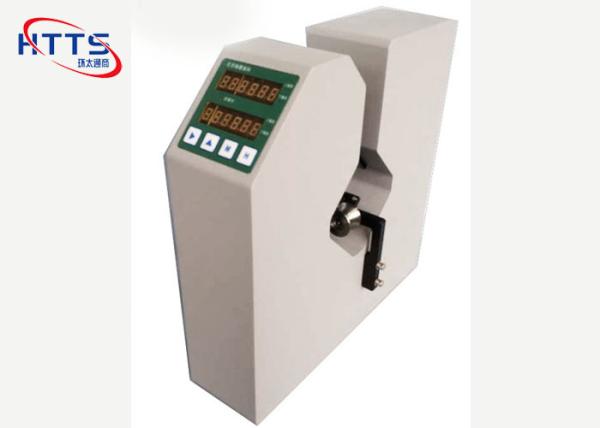

Two Axis High Accuracy Laser Diameter Test Equipment For Cable And Fiber Images
