ISO Passed 2 Axis Laser Diameter Gauging Tools High Precise Measure Range

Product Categories
Weifang Huantaitongshang Import And Export Co., Ltd.
Contact Now

ISO Passed 2 Axis Laser Diameter Gauging Tools High Precise Measure Range

  • 1
  • 2
  • 3

Brand Name : HTTS

Model Number : LDM-25AXY

Certification : ISO

Place of Origin : CHINA

MOQ : 1 SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 sets / week

Delivery Time : 5-8 work days

Packaging Details : export carton packing

Model : LDM-25AXY

Measuring range : 0.1000~25mm

Precision : ±1μm

Repeatability error : ±0.5μm

Resolution : 0. 0001mm

Type : Laser Distance Measuring Instrument

Usage : Measuring Diameter,Diameter measurement

Application : Pipe diameter production testing,Laser diameter measuring

Warranty : 12 Months,1 year

Contact Now

ISO Passed 2 Axis Laser Diameter Gauging Tools High Precise Measure Range

INTRODUCTION

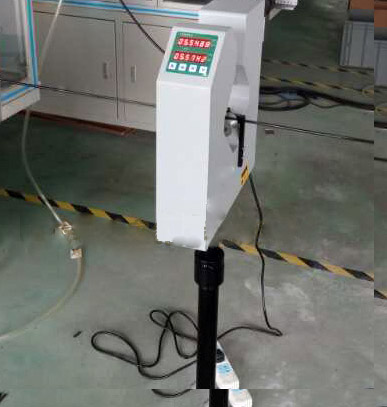

The LDM-25AXY is a high accuracy one without contacting designed on the basis of the laser scan measuring principle. It is special suitable for real-time measurement of the production field, and widely used in the test of round wire materials such as communication cables, optical cables, co-axial cables and power cables, and the test of various kinds of other round work piece diameters.

FEATURES

  • Scanning speed:1800scan/second
  • Communication interface: RS232 and RS485, that can keep online detection by connecting computer or transfer the measurement records to computer.
  • Parameter setting: User can set the nominal value and tolerance of the measured object; and set the error alarm indication; the gauge No, line No, technical strand and so on.

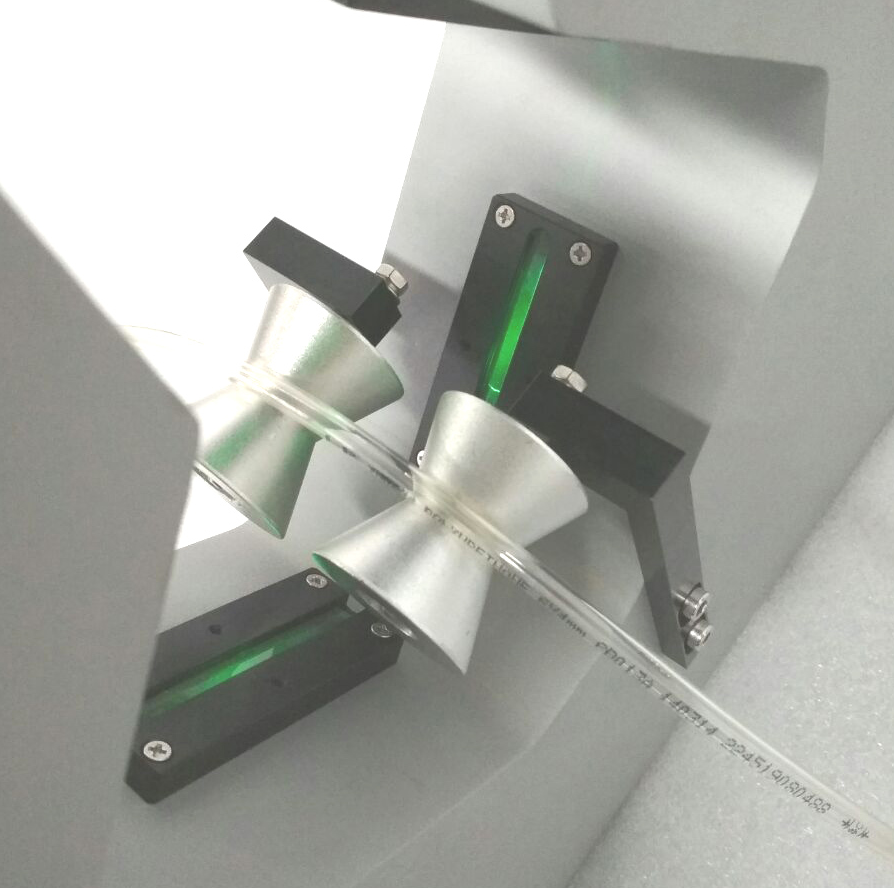

  • Online laser diameter gauging instrument for measuring wire & cable diameter at two axis

SPECIFICATION

Type Measuring range Precision Repeatability error Resolution
LDM-25AXY 0. 1000~25mm ±1μm ±1μm

0.001mm
COMPANY ADVANTAGE
  • StrongR&D Team
  • Over 20 Years Production Experience
  • 3-5 Days Fast Delivery For Small Intruments
  • Worry-free Replacement,Lifetime Maintenance

DETAILS

ISO Passed 2 Axis Laser Diameter Gauging Tools High Precise Measure RangeISO Passed 2 Axis Laser Diameter Gauging Tools High Precise Measure RangeISO Passed 2 Axis Laser Diameter Gauging Tools High Precise Measure Range

OUR SERVICE

ISO Passed 2 Axis Laser Diameter Gauging Tools High Precise Measure Range
